Utility Gauges
Steel Case

General purpose gauges suitable for use on pressure media that are non-corrosive to brass or bronze and where stem mounting is desired. Easy-to-read standard PSI dial with large black numerals on white background. Recommended for use with air, oil, compressed gas and water service. Gauges over 1000 PSI UL Listed (except 5000 PSI).

GAUGE SPECIFICATIONS
 CASE: Black, Powder Painted Drawn Steel Standard Stainless Steel available in1½" and 2"
LENS: Polycarbonate with Bump that Helps Protect Lens against Scratching. Black Powder Painted Steel Friction Ring for Standard Case. One-piece Polycarbonate Posi-Lock Lens for Stainless Steel Case and Compound Gauges
SOCKET: Brass
CONNECTION: 1/8" N.P.T. - 1½" Dial Size  ¼" N.P.T. - 2" and 2½" Dial Size (1/8" N.P.T. Available)
MOVEMENT: Precision Machined Copper Alloy Movement insuring sustained accuracy and extended service
TUBE: Copper Alloy Bourdon Tube
POINTER: Black Finished Aluminum (Adjustable Pointer Standard on Compound Gauges)
DIAL SIZE: 1½", 2" and 2½"
DIAL FACE: Corrosion Resistant Aluminum
ACCURACY: 3-2-3% per A.N.S.I. B40.1 Grade B

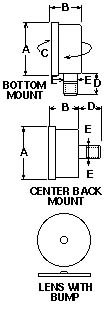

Dail Size
Type
A
B
C
D
E
1 ½"
BM
1 11/16"
15/16"
1 7/8"
21/23"
½"
2"
2 3/16"
15/16"
2 5/16"
7/8"
9/16"
2 ½"
2 33/32"
1 5/32"
3 5/32"
7/8"
9/16"
1 ½"
CBM
1 11/16"
15/16"
N/A
21/32"
½"
2"
2 3/16"
15/16"
N/A
29/32"
9/16"
2 ½"
2 23/32"
1 1/16"
N/A
29/32"
9/16"
Dimensions subject to change without notice.
Standard dials available: PSI only,PSI/Kg, PSI/kPa or PSI/Bar. Other scales and special configurations can be custom built to your specifications. For more information, contact us at 800/323-5111.

STANDARD DIAL PRESSURE RANGES
( Many compound scales are available and come standard with a posi-lock case and lens.)
DIAL RANGES PSI
30"HG
(30" HG†)
15
(15†)
30
60
100
160
200
300
400
600
1000
2000*
3000*
4000*
5000
6000*
NUMERALS PSIG
5"
(5")
3
5
5
10
20
40
40
50
100
100
200
400
500
500
1000
1000
GRADUATIONS PSIG
1"
(1")
.25
1
1
2
2
5
5
5
10
20
20
50
50
100
100
200
† Half scale, full scale available. *Pressures UL Listed 442M

For your copy of A.N.S.I. B40 standard gauge - pressure indicating dial type - elastic element, contact: The American Society of Mechanical Engineers, Three Park Avenue New York, NY 10016-5990 or call: 212/591-8500 Fax: 212/591-8501 www.asme.org
